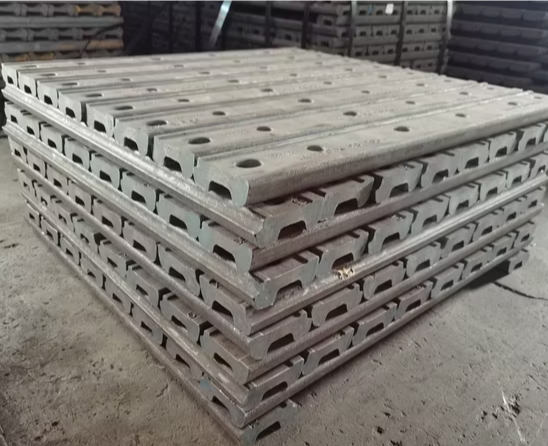

P65 Railway Fish Plate with 6 and 4 Holes for Stability

  • P65 Railway Fish Plate with 6 and 4 Holes for Stability
  • P65 Railway Fish Plate with 6 and 4 Holes for Stability
Menşe yeri Çin
Marka adı Kingrail
Sertifika CB, CE, EMC, RoHS SABER
Model numarası P65
Min sipariş miktarı Pazarlık edilebilir
Fiyat negotiable
Ambalaj bilgileri standart ihracat paketi veya müşteri isteğine göre
Teslim süresi 1-30 iş günü
Ödeme koşulları L/C,D/A,D/P,T/T,Western Union,MoneyGram
Yetenek temini 1800000 Ton/yıl

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
Üretme Oem Yüzey işleme Tablo
Kurulum Kolay Yüzey kalitesi İşleme veya Sprey Boyama
Akma Dayanımı ≥ 500 MPa İşlem Sıcak kalıpta dövme veya açık kalıpta dövme
Tasarım Basit Kullanım Demiryolu
Tip Akslar Tekerlek çapı 1-1450mm
Bedenler Müşteri çizimine göre Uygulama Demiryolu Araçlarının Süspansiyon Sistemi
Boyut Müşterinin çizimine göre Korozyon direnci Güçlü
Renk Siyah
Mesaj bırakın
Ürün Açıklaması
Model NO.
P65
Customized
Customized
Certification
ISO14001, ISO9001
Type
Fish Plate
Product
P65 Fish Plate
Materials
K54
Surface
Plain
Tensile Strength
Min 844 MPa
Yiled Strength
Min 530 MPa
Holes
6 Holes
Transport Package
Steel Belt
Specification
1m*1m*1m
Trademark
SHWEDO
Origin
China
HS Code
7302400000
Production Capacity
1000 Tons Each Month

Product Description


High-Performance Fish Plate
Our high-performance fish plate is a crucial component in railway infrastructure, masterfully engineered to connect rails seamlessly with fasteners. This ensures uncompromised safety and efficiency in rail operations.
Whether for mining railways or passenger railways, our fish plate stands as the preferred choice. Engineered with cutting-edge technology and crafted from robust materials, this fish plate guarantees an unrivaled connection force. It offers a cost-effective solution with easy maintenance, enabling effortless rail replacements. Ideal for heavy-load railways, it promises outstanding performance across varied terrains and challenging working conditions.
Specification
Applications
1. Low-Speed Railway: Applicable where the passing speed does not exceed 120KM/H, ensuring safe and reliable rail operations.
2. Heavy Load Railway: Engineered for sections where the passing speed in a straight direction does not exceed 60KM/H, offering robust support for substantial loads.
3. Mining Railway: Designed for mining railways where the passing speed in a straight direction is limited to50KM/H, ensuring durability under demanding conditions.
4. Steel Factory Railroad: Optimized for operational speeds not exceeding 50KM/H, providing consistent performance in industrial environments.
5. Tourism Track: Perfect for leisure railways with speeds capped at 50KM/H, ensuring both safety and enjoyment.

Key Information


Tensile Strength: Minimum 840 MPa, ensuring robust performance and reliability in all applications.
Yield Strength: Minimum 540 MPa, providing excellent resistance to deformation under stress.
Cold Bend Test: 30-degree bend with no cracking, showcasing exceptional material flexibility and resilience.
Materials: Constructed from 45#, 55#, 56NBand K54 steel, known for their superior strength and durability.
Hardness: Exceeds 240 HBW, ensuring long-lasting performance and minimal wear.
